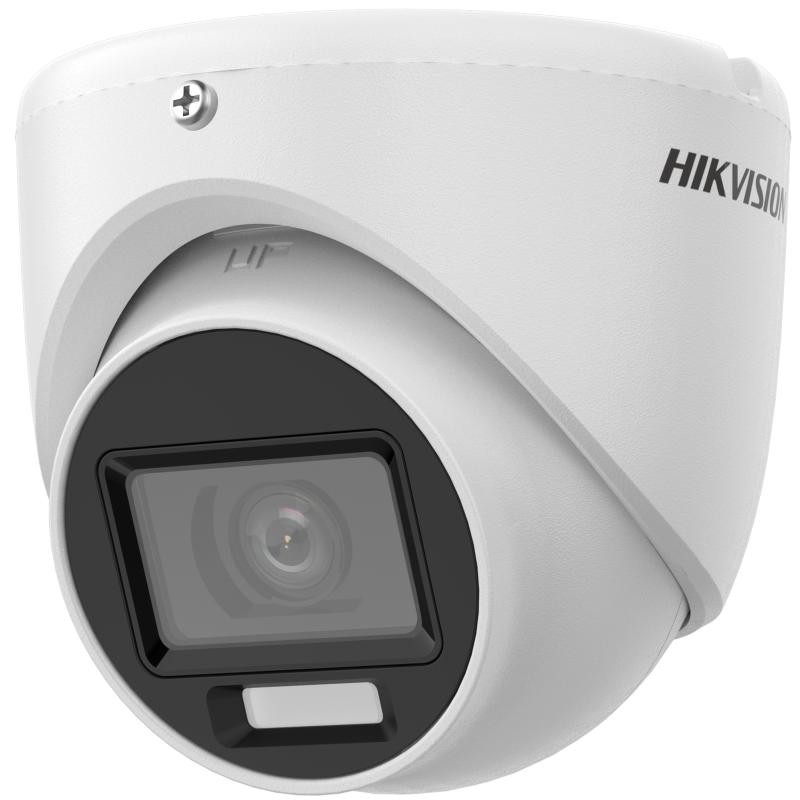

Camera Dome 2MP Hybrid light Audio Hikvision DS-2CE76D0T-LMFS

Camera
Image Sensor2 MP CMOS
Max. Resolution1920 (H) × 1080 (V)
Min. Illumination0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360°
Signal SystemPAL/NTSC
Lens
Lens Type2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 101°, vertical FOV: 56°, diagonal FOV: 118°

3.6 mm, horizontal FOV: 78°, vertical FOV: 42°, diagonal FOV: 92°

Lens MountM12
Illuminator
Supplement Light TypeWhite Light;IR
Supplement Light Range
IR : Up to 30 m

White Light : Up to 20 m

Image SettingsBrightness, Sharpness, Smart IR
Frame Rate
TVI: 1080P @ 30 fps, 1080P @ 25 fps

AHD: 1080P @ 30 fps, 1080P @ 25 fps

CVI: 1080P @ 30 fps, 1080P @ 25 fps

CVBS: PAL/NTSC

Day/Night ModeAuto/Color/BW (Black and White)
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementDWDR/BLC/HLC/Global
White BalanceAuto/Manual
AGCYes
Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
Built-in MicrophoneYes
General
MaterialMetal
Dimension80 mm × Ø85.1 mm (3.1″ × Ø3.4″)
WeightApprox. 296 g (0.65 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply
12 VDC ± 25%

*You are recommended to use one power adapter to supply the power for one camera.

ConsumptionMax. 3.3 W
Approval
ProtectionIP67
