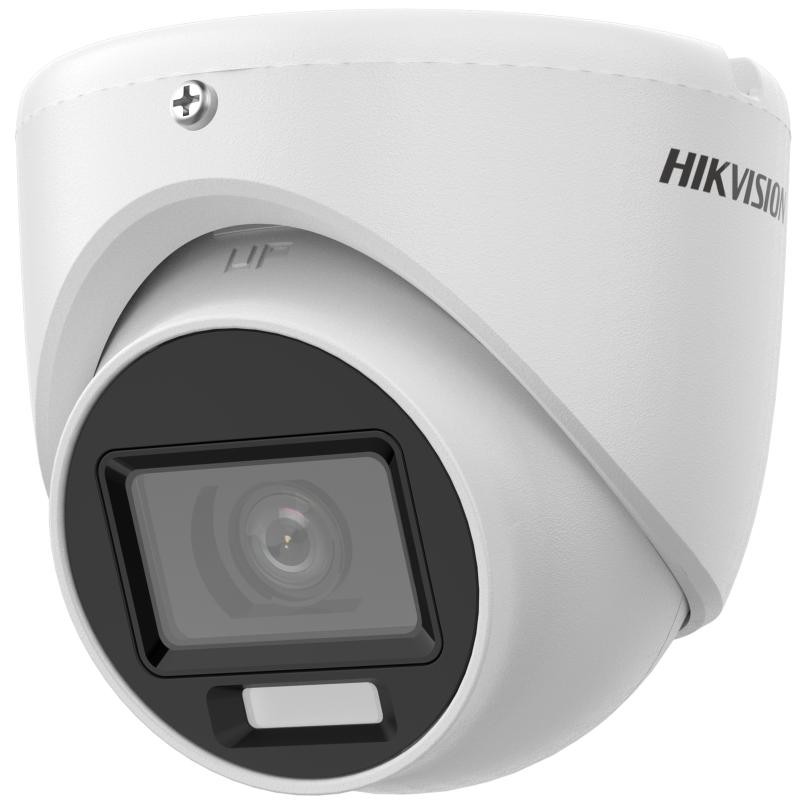

Camera dome analogique hybrid light 3K HIKVISION DS-2CE76K0T-EXLMF

Camera
Image Sensor3K CMOS
Max. Resolution2960 (H) × 1665 (V)
Min. Illumination0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR
Shutter TimePAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Day & NightICR
Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 75°, Rotate: 0 to 360°
Signal SystemPAL/NTSC
Lens
Lens Type2.8 mm, 3.6 mm fixed focal lens
Focal Length & FOV
2.8 mm, horizontal FOV: 101°, vertical FOV: 64°, diagonal FOV: 125°

3.6 mm, horizontal FOV: 80°, vertical FOV: 51°, diagonal FOV: 98°

Lens MountM12
Illuminator
Supplement Light Range
IR : Up to 20 m

White Light : Up to 20 m

Supplement Light TypeSmart, IR, White Light
Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
Image SettingsBrightness, Sharpness, Smart IR
Frame Rate
TVI: 3K @20 fps, 4 MP @25 fps/30 fps, 1080p @25 fps/30 fps

AHD: 5 MP @20 fps, 4 MP @25 fps/30 fps

CVI: 4 MP @25 fps/30 fps

CVBS: PAL/NTSC

Day/Night ModeAuto/Color
Wide Dynamic Range (WDR)Digital WDR
Image EnhancementDWDR/BLC/HLC/HLS/Global
White BalanceAuto/Manual
AGCYes
Interface
Video OutputSwitchable TVI/AHD/CVI/CVBS
General
MaterialPlastic
DimensionØ85 mm × 84.6 mm (3.35” × 3.33”)
WeightMax. 150 g (0.33 lb.)
Operating Condition-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)
CommunicationHIKVISION-C
LanguageEnglish
Power Supply
12 VDC ± 25%, Max. 4.0 W

*You are recommended to use one power adapter to supply the power for one camera.
