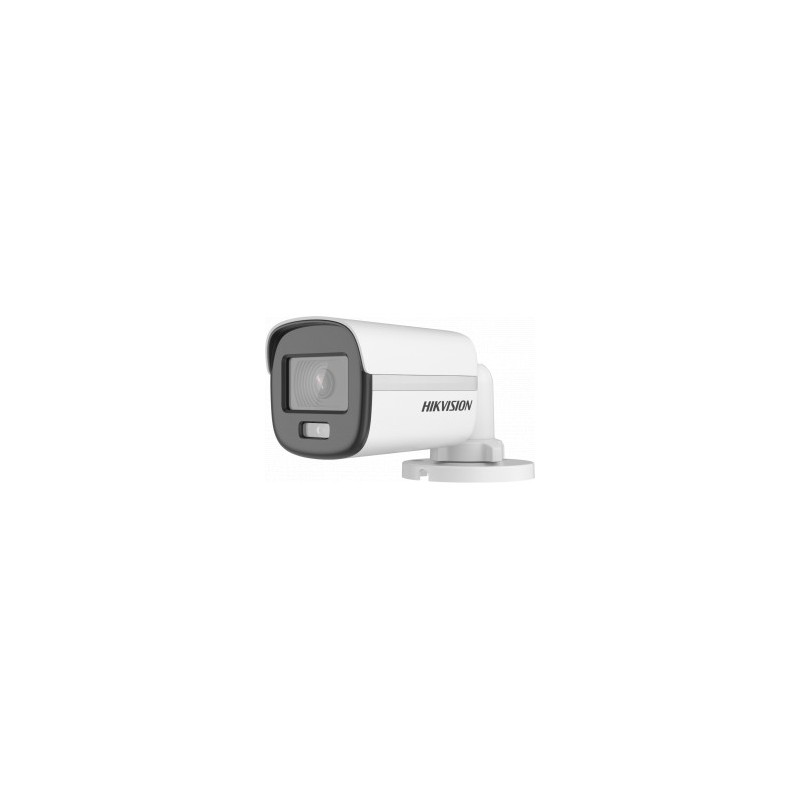

Camera Mini Bullet 2MP ColorVu Hikvision DS-2CE10DF0T-F

Camera
Image Sensor :2 MP CMOS
Max. Resolution :1920 (H) × 1080 (V)
Min. Illumination :0.001 Lux @ (F1.0, AGC ON), 0 Lux with white light
Shutter Time :PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
Angle Adjustment :Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
Signal System :PAL/NTSC
Light Alarm :Solid Light Alarm (White Light)
Lens
Lens Type :2.8 mm, 3.6 mm, 6 mm fixed focal lens
Focal Length & FOV :
2.8 mm, horizontal FOV: 98°, vertical FOV: 51°, diagonal FOV: 115°

3.6 mm, horizontal FOV: 76°, vertical FOV: 41°, diagonal FOV: 90°

6 mm, horizontal FOV: 50°, vertical FOV: 27°, diagonal FOV: 58°

Lens Mount :M12
Illuminator
Supplement Light Type :White Light
Supplement Light Range :Up to 20 m
Smart Supplement Light :Yes
Image Parameters Switch :STD/HIGH-SAT/HIGHLIGHT
Image Settings :Brightness, Mirror, Sharpness, Anti-Banding, AGC
Frame Rate :
TVI: 1080p@25fps/30fps

CVI: 1080p@25fps/30fps

AHD: 1080p@25fps/30fps

CVBS: PAL/NTSC

Day/Night Mode :Color
Wide Dynamic Range (WDR) :Digital WDR
Image Enhancement :DWDR, BLC, HLC, Global
Noise Reduction :3D DNR/2D DNR
White Balance :Auto/Manual
Interface
Video Output :Switchable TVI/AHD/CVI/CVBS
General
Material :Metal
Dimension :161.1 mm × 70 mm × 70 mm (6.34″ × 2.76″ × 2.76″)
Weight :Approx. 395 g (0.87 lb)
Operating Condition :-40°C to 60°C (-40°F to140°F), Humidity: 90% or less (non-condensing)
Communication :HIKVISION-C
Language :English
Power :
12 VDC ± 25%, Max. 2.4 W

*You are recommended to use one power adapter to supply the power for one camera.

Approval
Protection :IP67
