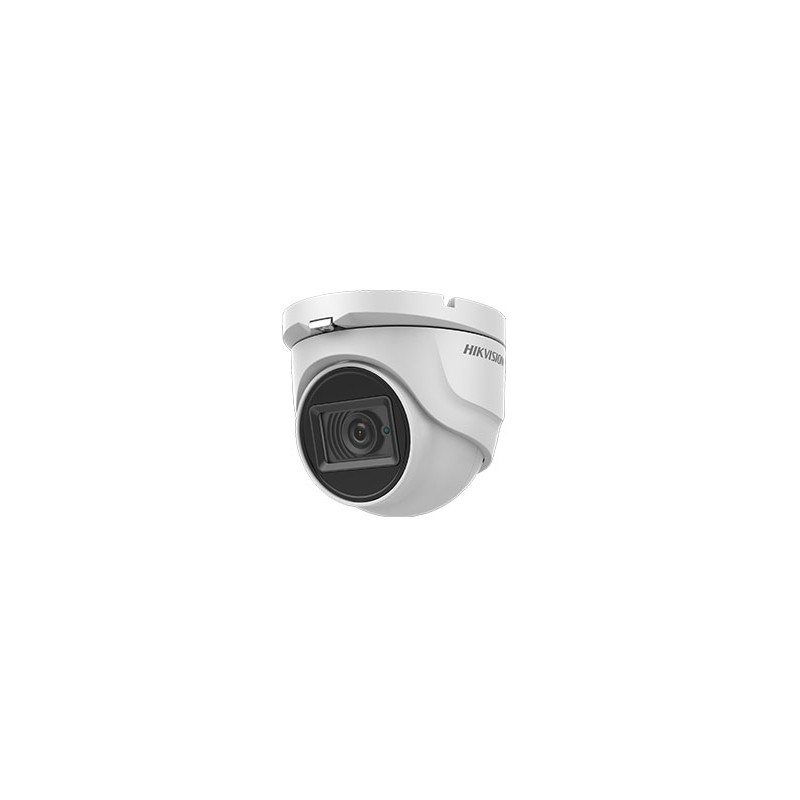

Camera Mini dome 5MP Hikvision DS-2CE76H0T-ITMF

Camera
Image Sensor :5 MP CMOS image sensor
Max. Resolution :2560 (H) × 1944 (V)
Min. Illumination :Color: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR
Shutter Time :
PAL: 1/25 s to 1/50, 000 s

NTSC: 1/30 s to 1/50, 000 s

Day & Night :ICR
Angle Adjustment :Pan: 0 to 360°, Tilt: 0 to 75°, Rotation 0 to 360°
Signal System :PAL/NTSC
Lens
Lens Type :2.4 mm, 2.8 mm, 3.6 mm, 6 mm fixed lens
Focal Length & FOV :
2.4 mm, horizontal FOV: 103°, vertical FOV: 81°, diagonal FOV: 142°

2.8 mm, horizontal FOV: 86°, vertical FOV: 63°, diagonal FOV: 120°

3.6 mm, horizontal FOV: 80°, vertical FOV: 63°, diagonal FOV: 112°

6 mm, horizontal FOV: 55°, vertical FOV: 40°, diagonal FOV: 70°

Lens Mount :M12
Image Parameters Switch :STD/HIGH-SAT
Image Settings :Brightness, Sharpness, Mirror, Smart IR
Frame Rate :
TVI: 5M@20fps, 4M@30fps, 4M@25fps, 1080p@30fps, 1080p@25fps

AHD: 5M@20fps, 4M@30fps, 4M@25fps

CVI: 4M@30fps, 4M@25fps

CVBS: PAL/NTSC

Day/Night Mode :Auto/Color/BW (Black and White)
Wide Dynamic Range (WDR) :Digital WDR
Image Enhancement :BLC, HLC
White Balance :ATW/MANUAL
AGC :Support
Interface
Video Output :Switchable TVI/AHD/CVI/CVBS
General
Material :Metal
Dimension :Φ 82.6 mm × 90 mm × 79.37 mm (Φ 3.25″ × 3.54″ × 3.12″)
Weight :Approx. 289 g (0.64 lb.)
Operating Condition :-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
Alimentation :12 VDC ±25%
Consumption :
Max. 4.3 W

IR Range :Up to 30 m
Approval
Protection :IP67
